- TV402-- 4 port 10/100 PoE switch with 2 uplink FE ports, built-in power
- 4+2 port 100Mbps POE switchModel：TV402
Supplying power for the wireless access point of AP and network camera by using UTP CAT5e, having 4port of 10/100MBPS standard PoE power supply and 2 auto- adaptable 10/100MBPS UpLink.
-
1-4 port max 250 meters

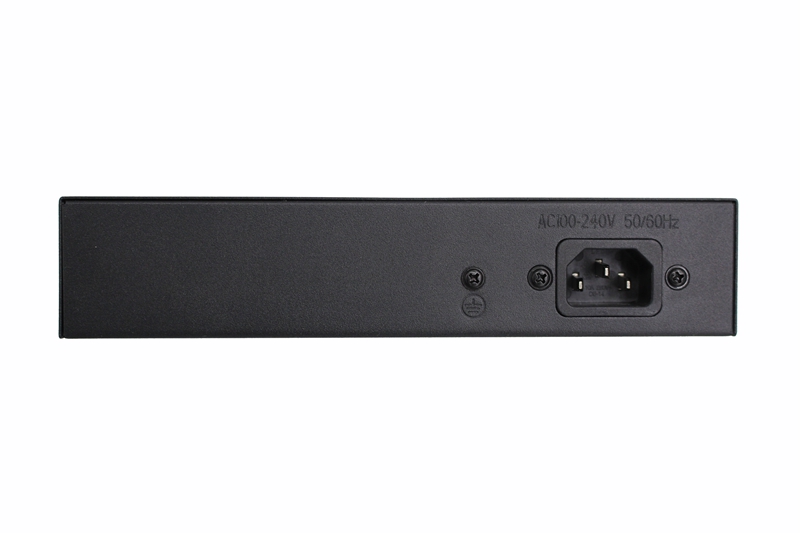

- Internal power supply 65W/52V
-
Independent Chips
-
1-4 port max 250 meters
- 10/100Mbps PoE Switch

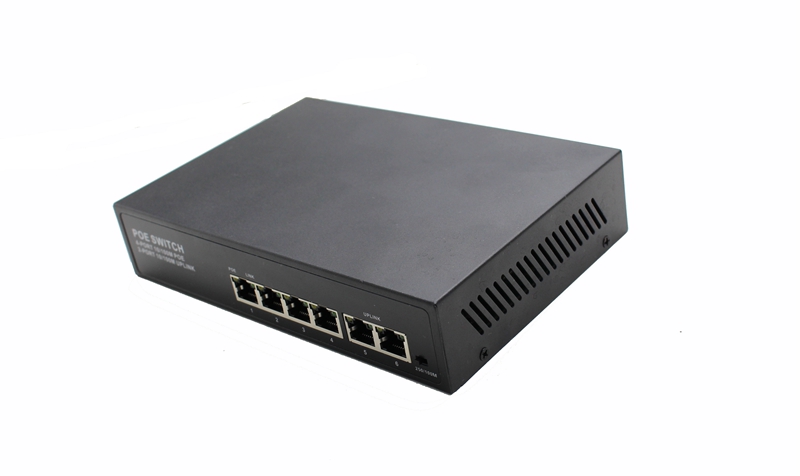

TB-VIEW TV402 is a 6-port unmanaged POE (Power-over-Ethernet) switch, it supports 4 POE ports which are classified as power source equipment (PSE). TV402 uses UTP CAT5e to transmit data and power at the same time from a network node. The port is not only for 10/100 MBPS connection, but which POE port can also provide IEEE802.3at standard of power supply. By testing, TV402 suit for 802.3af/at terminal equipment supply after classifying, without fear of damaging the private standard POE or non POE equipment, and single port can provide up to 25.5watts of power. TV402 greatly reduce the additional power wiring cost of the users, wireless LAN access points, video surveillance camera equipment and so on, providing users with higher flexibility and mobility. TV402
Advanced self-adaptive algorithm only supply PD terminal equipment with power, so without fear of damaging to private standard POE or non POE equipment. It will stop supplying power when POE equipment isn’t connected. EC541 series, with terse and reliable design, identify automatically the requirement of POE, speed, duplex, and using Auto Uplink TM cable types.
Features:
1. 4 port 10/100 MBPS, up to 100 meters POE power supply distance.
2. Built-in power supply 65W.
3. 1-4 port max 250 meters
4. 4 port IEEE802.3ats (30W) Ethernet power supply standard, compatible with IEEE802.3af (15.4W).
5. Dynamic LED display for monitoring port working conditions and power supply.
6. Through the secondary chip design of lightning protection, avoid electrostatic induction and isolate circuit protection at the same time.
7. Plug and play, require no configuration, power supply to the adaptive equipment automatically.
Specifications:
|
Detailed Description |
|
|
POE Specifications |
Support IEEE802 .3af,IEEE802 .3at international power supply standard |
|
POE power supply parameter |
Single port:IEEE802.3af 15.4W |
|
Max Power |
65W (standard) |
|
Power supply line |
Data line to 1, 2+ 3, 6- |
|
Port and Performance |
|
|
Electrical interface parameter |
·Electrical interface:RJ45 |
|
Network Protocol and Standards |
·IEEE802.3i 10BASE-T |
|
performance specification |
·Store and forwarding |
|
LED indicators |
·Per Port: Link, Activity, Speed |
|
safety protection |
IEC61000-4-2(ESD)±15KV(air),±8KV(contanc),be able to support 8/20us 24A(12A) |
|
Environment and Specifications |
|
|
Safety& Emission |
CE,ROHS |
|
Dimensions |
117x85x28mm(L x W x H) |
|
Weigh(kg) |
1.1kg |
|
Environmental Specifications |
·Operating temperature: 0 to 55℃ |
|
Warranty |
1 year |
