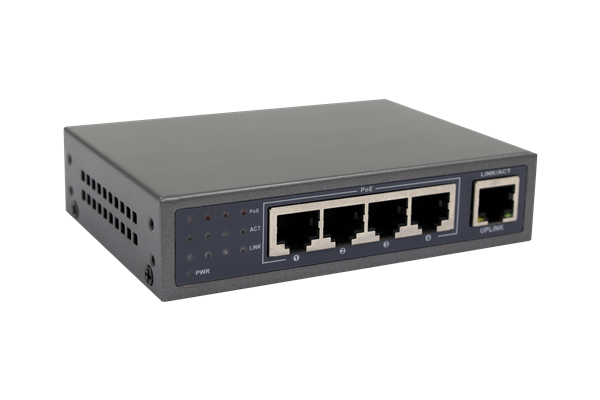

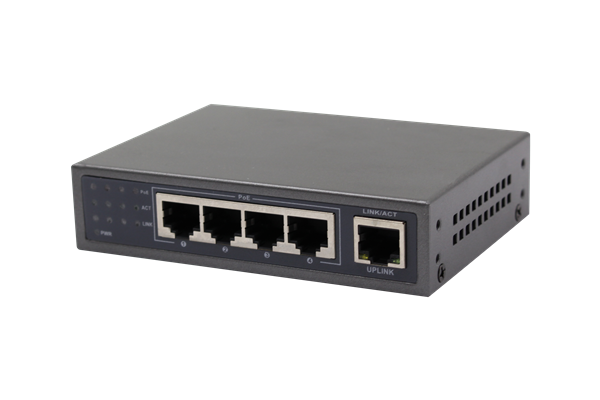

- TVG401--10/100/1000M 5 ports PoE Switch
- ◆Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras
- 10/100/1000Mbps PoE Switch
◆Port 1 to port 4 compatible with IEEE802.3af standard power
◆Supply (Maximum power of each port is 15.4W)
◆4x 10/100 /1000Mbps automatic adjustment RJ45 ports
◆Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab
◆Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard
◆Auto-flip ports (Auto MDI/MDIX)
◆Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
◆Maximum PoE Power: 65W( all PoE ports, port 2 to port 5)
◆ Store-and-forward architecture, 192K forwarding memory
◆All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
◆Wall-mounted design, easy to install and use
◆Automatic adjustment, plug and play, no need software and protocol conversion
The effective connectivity of the four 10/100/1000Mbps ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 8.8Gbps switching capacity. All RJ45 ports can auto adjust the highest connection speed for a normal working, Auto Uplink technology can ensure proper network connection.
Application Situations
◆ HD surveillance transmission and power supply
◆ Wireless AP distribution transmission and power supply
◆ VoIP transmission, intelligent home systems
◆ City intelligent traffic monitoring system (ITS), safe city, and wireless city
◆ Highway surveillance system, electronic road surveillance, snapshot system
◆ large industrial factory& enterprise security surveillance system, network multifunction system
Dimension(16.3*8*2.8cm, Net Weight: 0.29kg/unit)
Package Dimension(24*16.6*9.8cm,Gross Weight:0.83kg/unit)
Model number: TVG401
Product Description: 4x Gigabit PoE ports+1x Gigabit Uplink ports PoE switch, among which port 1 to port 4 supports POE IEEE 802.3af international standard, each port power is 15.4W, the whole power is 65W. Switch power adapter is external.
|
Technical parameters |
|
|
Product Name |
5-Port AF PoE Switch with 4 PoEPortsand 1 Uplink Ethernet |
|
Model |
TVG401 |
|
Connector Type |
5x 10/100/1000M copper cable RJ45 ports(4 PoE ports+1 Uplink) |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
|
Bandwidth |
10Gbps (non-blocking) |
|
Address Database Size |
1K |
|
MTBF |
190,000 hours (about 21 years) |
|
Forwarding Mode |
Store-And-Forward |
|
Network Protocols |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
|
LED Display |
System: power supply; Every Port: connecting, PoE working status |
|

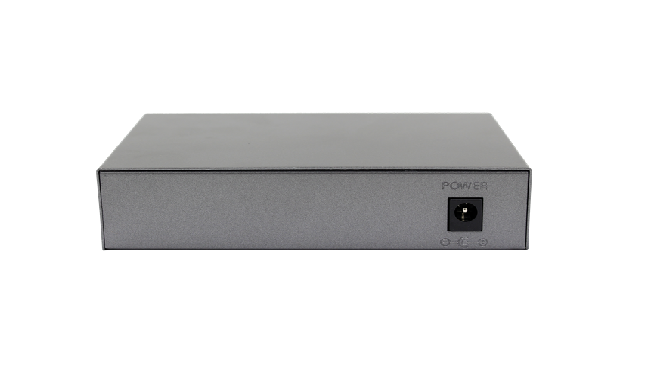

Power Supply |
Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
|
PoE Ports |
Port1-4 support POE |
|
PoE Port Power |
15.4W for each POE port |
|
PoE Standard |
IEEE 802.3af |
|
PoE Feature |
All ports support MDI/MDIX |
|
Working Environment |
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing |
|
Certification |
CE Mark ,commercial; CE/LVD EN60950, RoHS |
|
Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
|
Transmission Distance |
Data transmission distance: 100m |
|
Warranty |
3 year warranty ( 1 year warranty for power adapter ) |
