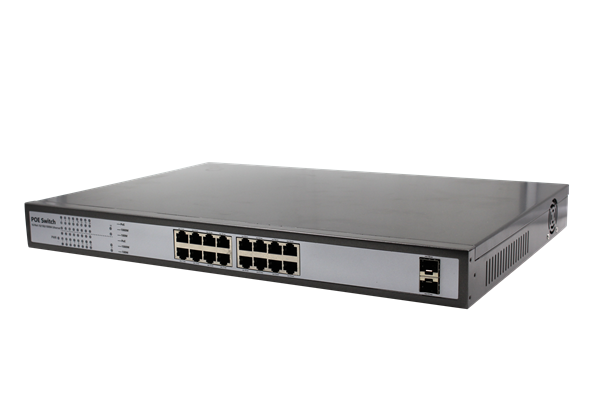

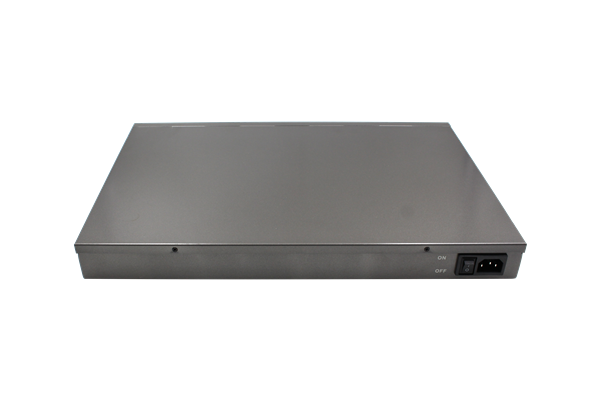

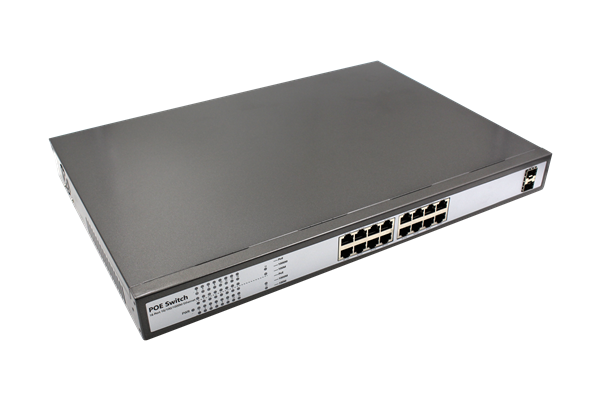

- TVG1602-- 10/100/1000 18 ports PoE Switch
-
◆IEEE 802.3af/at
- ◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆16 10/100/1000 Mbps PoE Ports with 2 Gigabit SFP uplink
◆PoE port up to 30W
◆Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
◆LED indicators for monitoring power, link, activity and speed
◆External power adapter supply 250W/48V - ◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 10/100/1000Mbps PoE Switch
Selecting to insert up to 16 Ethernet networks or Gigabit Ethernet devices or hybrid access to 16 IP-based IEEE802.3af/at PoE devices. Optimized installation and power management, such as the wireless access points (AP), Voice IP (VoIP) phones and IP-based cameras. Power over Ethernet (IEEE802.3af/at) is used for new construction equipment to improve network efficiency and reduce the time and cost of installation. Easily deploy your wireless access point AP and IP cameras, eliminating the need to power outlets and supply uninterrupted power to the entire PoE device.
Convenient
Indicator lights on the front panel make it easier to observe the status of the switch and solve the problems. It’s convenient for management access to web-based browser coming with plug and play features or intelligent installation guide.
Reliable
This durable switch is a 19 inch metal casing design. There are total matching rack kits in the package box. The switch is compatible with Windows, Macintosh O / S, Linux, Netware and other mainstream operating systems.
|
Technical parameters |
|
|
Product Name |
16-Port Gigabit PoE Switch with 16 PoE Ports and 2 SFP |
|
Model |
TVG1602 |
|
Connector Type |
16 10/100/1000 PoE Ports+2 Gigabit SFP Uplink |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
|
Bandwidth |
36Gbps (non-blocking) |
|
MTBF |
190,000 hours (about 21 years) |
|
Forwarding Mode |
Store-And-Forward |
|
Network Protocols |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; 1000BASE-T; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af; IEEE 802.3at |
|
LED Display |
System: power supply; Every Port: connecting, PoE working status |
|
Power Supply |
Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
|
PoE Ports |
16 ports support POE |
|
PoE Port Power |
30Wfor each POE port, total 150/250W option |
|
PoE Standard |
IEEE 802.3af/at |
|
PoE Feature |
All ports support MDI/MDIX |
|
Working Environment |
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing |
|
Certification |
CE Mark ,commercial; CE/LVD EN60950, RoHS |
|
Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
|
Transmission Distance |
Ethernet <100m, Optical fiber depend on SFP module |
|
Power Supply Type |
End-span type(Mid-span optional) |
|
Warranty |
1 year warranty |
