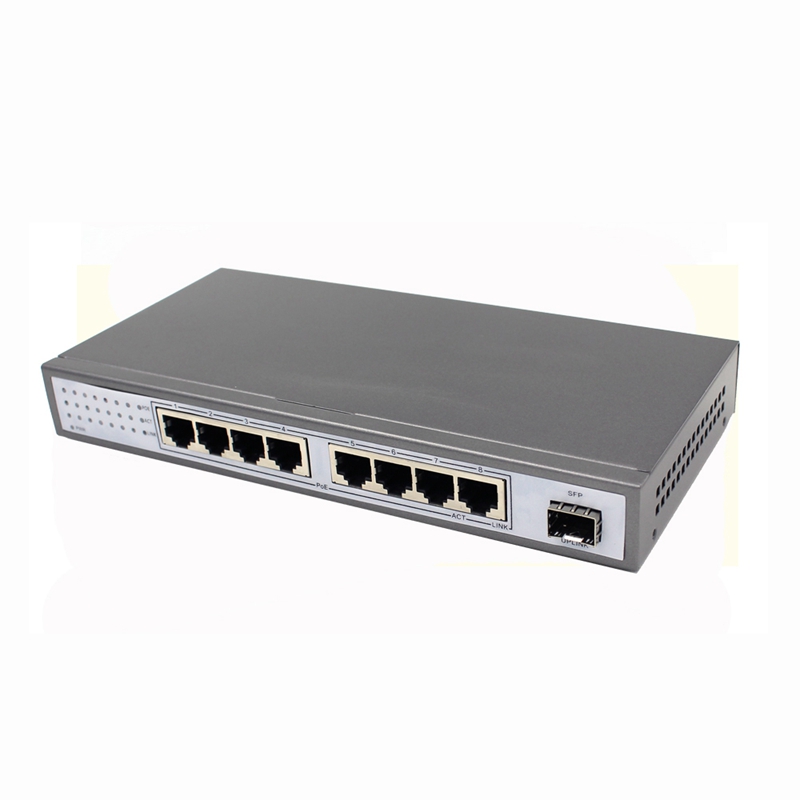

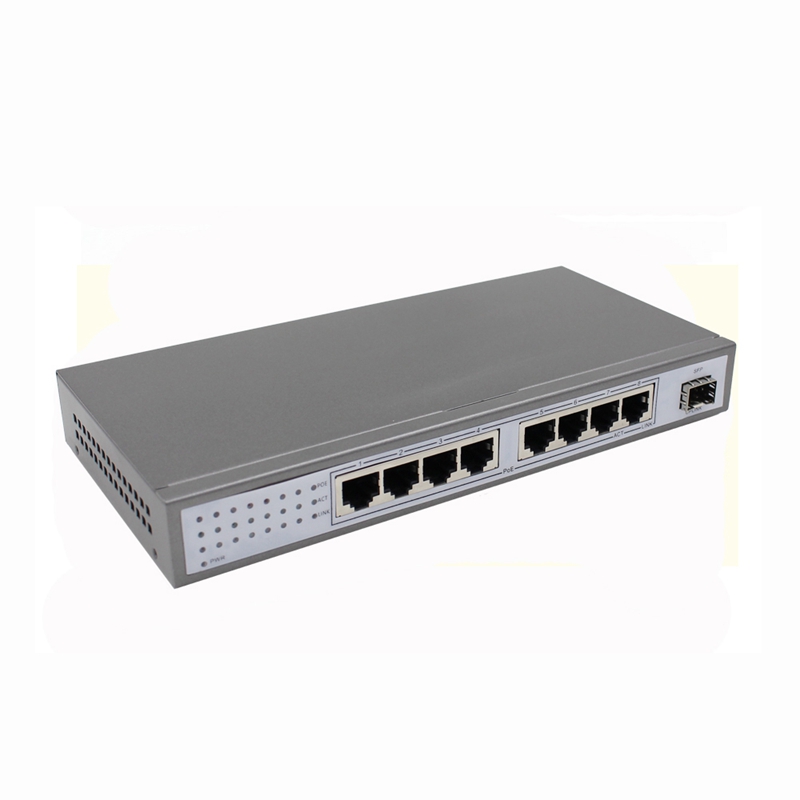

- TVG801S-- 8 10/100/1000 PoE ports with 1 Gigabit SFP uplink
◆IEEE 802.3af/at
-
◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆8 10/100/1000 Mbps PoE Ports with 1 Gigabit SFP uplink
◆PoE port up to 30W
◆Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
◆1K entry MAC address table of the PoE Switch TVG801S with auto-learning and auto-aging
◆LED indicators for monitoring power, link, activity and speed
◆External power adapter supply 96W/48V - 10/100/1000Mbps PoE Switch
Choose to plug in up to nine Ethernet or Gigabit Ethernet devices and mix in up to eight IEEE802.3af/at IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af/at-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.
Plug and Play
The standards-based PoE Switch TVG801S senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100/1000 Ethernet network. For PoE, the switch automatically detects IEEE802.3af/at-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact
Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.
Model number: TVG801S
Description: 8 10/100/1000 PoE ports with 1 Gigabit SFP uplink port, IEEE 802.3af/at; PoE Power Output: 15.4Watts per port. Total power budget 96Watts
|
Technical Parameters |
|
|
Product Name |
8-PORT 10/100/1000 PoE ports with 1 Gigabit SFP uplink |
|
Model |
TVG801S |
|
Connector Type |
8x 10/100/1000 copper cable RJ45 ports(8 PoE ports+1 Uplink) Network Latency:Maximum less than 18 microseconds |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) |
|
Bandwidth |
18Gbps (non-blocking) |
|
Address Database Size |
1K |
|
MTBF |
190,000 hours (about 21 years) |
|
Forwarding Mode |
Store-And-Forward |
|
Network Protocols |
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; 1000BASE-T, IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af/at |
|
LED Display |
System: power supply; Every Port: connecting, PoE working status |
|
Power Supply |
Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
|
PoE Ports |
Port1-8support POE |
|
PoE Port Power |
15.4W for each POE port, max 30W |
|
PoE Standard |
IEEE 802.3af/at |
|
PoE Feature |
All ports support MDI/MDIX |
|
Working Environment |
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing |
|
Certification |
CE Mark ,commercial; CE/LVD EN60950, RoHS |
|
Radiation |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
|
Transmission Distance |
Data transmission distance: 100m |
|
Warranty |
1 year warranty |
